Santos Bikes - Travelmaster E-Bosch - Technical Specifications

The technical specifications of this Travelmaster E+

With Rohloff drive and Bosch mid-motor

Frame

Aluminium Santos frame
Rigid E-Adventure fork compatible with lowrider racks, bikepacking setups, SON SL lighting and mudguards
Mixte version optionally available with Suntour suspension fork
Mounting points on the battery tube for cargo cages and bottle cages
Fully capable of carrying full touring luggage
Hydraulic disc brakes
Stainless steel headset bearings
Available in 3 frame versions:
- 4 high step: S/M/L/XL
- 4 mixte: S/M/L/XL
- 3 low step: S/M/L

Geometry

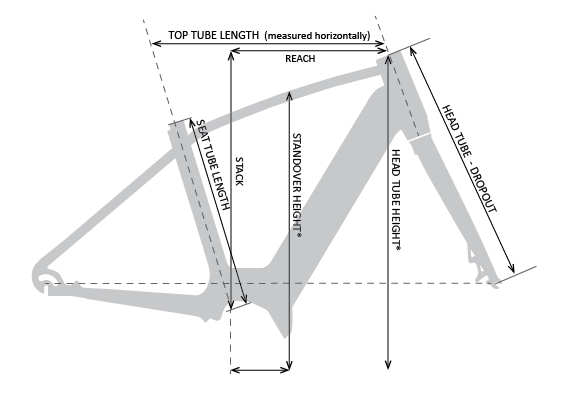

Geometrie High step frame

All measurements below are in millimeters, unless otherwise stated. Tip: testing says more than just numbers.

Geometry – Step-over model

Size	Seat tube length	Top tube length	Standover height	Head tube height	Head tube - Dropout	Stack	Reach
47 cm	470	590	812	935	640	652	391
51 cm	510	590	841	944	650	657	389
57 cm	570	620	867	953	650	657	420
63 cm	630	630	902	963	670	676	423

* Measured with the Schwalbe Super Moto-X 27.5 inch 62mm (= almost equal to Schwalbe Almotion 28 inch 50mm)

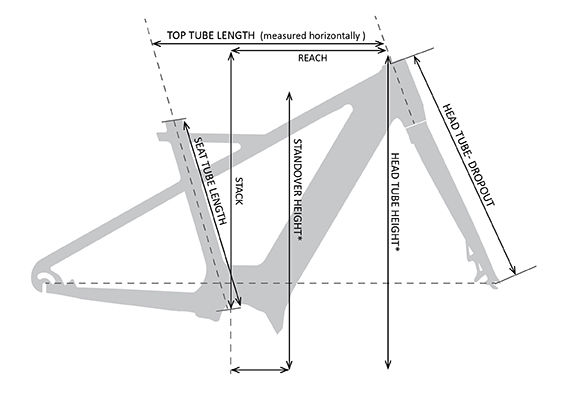

Geometrie Mixte frame

All measurements below are in millimeters, unless otherwise stated. Tip: testing says more than just numbers.

Geometry – Mixte model

Size	Seat tube length	Top tube length	Standover height	Head tube height	Head tube - Dropout	Stack	Reach
47 cm	470	590	812	935	640	652	391
51 cm	510	590	841	944	650	657	389
57 cm	570	620	867	953	650	657	420
63 cm	630	630	902	963	670	676	423

* Measured with the Schwalbe Super Moto-X 27.5 inch 62mm (= almost equal to Schwalbe Almotion 28 inch 50mm)

Geometrie Low step frame

All measurements below are in millimeters, unless otherwise stated. Tip: testing says more than just numbers.

Geometry – LowStep model

Size	Seat tube length	Top tube length	Standover height	Head tube height	Head tube - Dropout	Stack	Reach
47 cm	470	590	812	935	640	652	391
51 cm	510	590	841	944	650	657	389
57 cm	570	620	867	953	650	657	420
63 cm	630	630	902	963	670	676	423

* Measured with the Schwalbe Super Moto-X 27.5 inch 62mm (= almost equal to Schwalbe Almotion 28 inch 50mm)

Drivetrain

Rohloff internal gear hub with belt drive

14 gears
Available in 6 colors
Internal geared hub

Gates belt drive with strong CDX-EXP sprockets and Santos Belt Guardprotector

Motor & Battery

Powerful and long-lasting Bosch motor:
Performance Line CX mid-drive motor (85 Nm)

Internal steel gears for extended durability
Maximum motor power: 600 W
Standard support level: 320%
Maximum support level: 400% after update
Maximum possible torque: 85 Nm
Motor support up to 25 km/h
Weight: approx. 2.9 kg

Powerful integrated Bosch battery:
PowerTube 750 (Wh) + optional 250 Wh extender

Expandable with a Bosch Powermore 250 (Wh)
for up to 1000 Wh total
In-frame battery, removable with the same key as the bike lock
In-frame charging possible
Voltage: 36 V
Capacity: 20.1 Ah
Weight: approx. 4.3 kg

Bosch eBike Flow App

The Flow app is the heart of the Bosch Smart System, providing a connected, safer, more personal and more comfortable riding experience.

Standard Flow App Features:

Navigation & route planning: Plan routes and follow clear turn-by-turn instructions
Activity tracking: Automatically record your rides and sync with komoot and Strava
Customizable riding modes: Adjust the support levels to match your riding style
eBike Lock: Use your smartphone as a digital key to activate motor support
Wireless updates: Keep your e-bike software up to date effortlessly

Flow+ (monthly or yearly subscription)
Flow+ adds advanced security features, fully supported on the Travelmaster E+ thanks to the integrated Bosch ConnectModule:

eBike Alarm: Audible and visual alarm with GPS tracking via the ConnectModule
Battery Lock: Digitally locks the battery, making it unusable in case of theft

Brakes

Powerful hydraulic disc brakes, with a choice of:

Shimano XT with 180 mm Santos rotors
F//2000 Fahrwerker with 180 mm rotors
(with ergonomic 4-finger brake levers)
Hope Tech4-X2 with 180 mm Santos rotors
Available in: Blue, Orange, Red, Black

Rohloff E-14 2.0

(Optional) Electronic shifting with three modes tailored to your riding style:

A | Automatic: The bike shifts automatically
M+ | Mixed: During coasting, the bike shifts automatically to maintain your preset cadence; while pedaling, you shift manually
M | Manual: Full manual shifting using the electronic shifters

Santos colors

The Santos frame colors come in 58 variations. In addition, there are 14 matching font colors and various matching parts.

If your favorite color isn't among the options? No problem. You can also opt for a custom color. These are available upon request.

View all Santos colors.

Santos Only

Every Santos contains Santos Only parts, specially designed by us for the ultimate cycling experience. Sometimes prominent, sometimes barely visible. But always there to enhance the versatility, modularity and durability of your bike.

View all Santos Only.
